Unity 居家照顧小工具 (待更新)

Unity 練習UI 腳本，因此做了一個小型居家照顧小工具，主要家人工作關係，都要計算，就拿來當練習玩玩。

專案會持續更新.....會弄到導航計算公里數功能。

專案 GitHub

顯示結果:

本文 只提供場景的UI 功能程式。

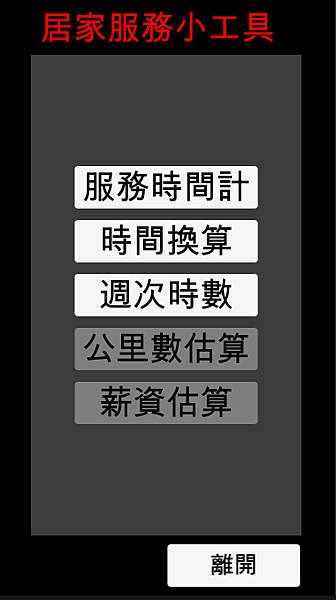

主頁

MainInterface 腳本:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class MainInterface
{
    private Image buttonArea;
    private RectTransform area;

    ImageSetting buttonAreaSetting;
    AreaSetting areaSetting;

    public MainInterface(Image buttonArea, RectTransform area)
    {
        this.buttonArea = buttonArea;
        this.area = area;
    }

    public void buttonArea_Layout()
    {
        buttonAreaSetting = new ImageSetting(buttonArea, 1f, 1f, 1.6f, 1.6f);
        buttonAreaSetting.function(null, false, true, area);

        // buttonArea 物件底下子物件
        area.transform.parent = buttonArea.transform;

        areaSetting = new AreaSetting(area, new Vector2(0, 0), new Vector2(1, 1), new Vector2(0.5f, 0.5f));
        areaSetting.function(TextAnchor.MiddleCenter, false, false, false, false, true, true);
    }
}

------------------------

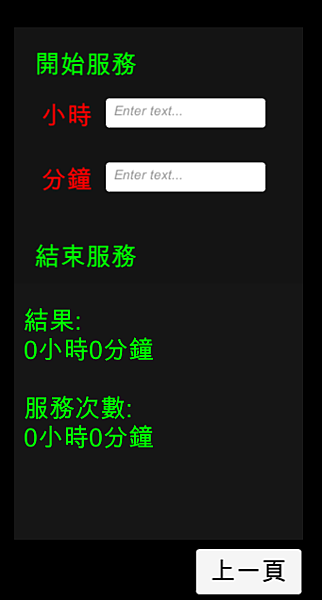

服務時間計算

ServiceInterface 腳本:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using System;

public class ServiceInterface
{
    private RectTransform manage;
    private Text hour, minute, titleMessage, serviceMessage;
    private InputField hourInput, minuteInput, serviceInputField;

    AreaSetting manageSetting;
    TextSetting titleMessageSetting;

    InterfaceSetting hourSetting, minuteSetting, servicesSetting;

    private Image breakGroud;
    private Image breaGroudArea;

    ImageSetting breakGroudSetting;
    ImageSetting breakGraoudAreaSetting;

    public ServiceInterface(RectTransform manage, Text titleMessage,
        Text hour, InputField hourInput, Text minute, InputField minuteInput)
    {
        this.manage = manage;
        this.titleMessage = titleMessage;
        this.hour = hour;
        this.hourInput = hourInput;
        this.minute = minute;
        this.minuteInput = minuteInput;
    }

    public ServiceInterface(Image breakGroud, Image breaGroudArea, RectTransform manage)
    {
        this.breakGroud = breakGroud;
        this.breaGroudArea = breaGroudArea;
        this.manage = manage;
    }

    public ServiceInterface(RectTransform manage, Text serviceMessage, InputField serviceInputField)
    {
        this.manage = manage;
        this.serviceMessage = serviceMessage;
        this.serviceInputField = serviceInputField;
    }

    public void breakGroud_Layout()
    {
        breakGroudSetting = new ImageSetting(breakGroud, 1f, 1f, 1.6f, 1.6f);
        breakGroudSetting.function(null);

        // breakGroudArea 物件底下子物件
        breaGroudArea.transform.parent = breakGroud.transform;

        breakGraoudAreaSetting = new ImageSetting(breaGroudArea, 1f, 1.4f, 1.6f, 0.8f);
        breakGraoudAreaSetting.function(null, false, true, manage);

        // breaGroudArea 物件底下子物件
        manage.transform.parent = breaGroudArea.transform;

        manageSetting = new AreaSetting(manage, Vector2.zero, new Vector2(1, 1), new Vector2(0.5f, 1));
        manageSetting.defaultFunction(new Vector2(0, Screen.height / 2 * 0.8f));
    }

    // 服務次數
    public void serviceTime_Layout(Font font, float pointY)
    {
        manageSetting = new AreaSetting(manage, new Vector2(0.5f, 0.5f), new Vector2(0.5f, 0.5f), new Vector2(0.5f, 0.5f));
        manageSetting.defaultFunction(Vector2.zero);

        servicesSetting = new InterfaceSetting(serviceMessage, serviceInputField, font);
        servicesSetting.funtcionHoliday("服務次數", pointY, Color.green);

        serviceMessage.transform.parent = manage.transform;
        serviceInputField.transform.parent = manage.transform;
    }

    public void serverTime_Layout(Font font, float pointY, string title)
    {
        manageSetting = new AreaSetting(manage, new Vector2(0.5f, 0.5f), new Vector2(0.5f, 0.5f), new Vector2(0.5f, 0.5f));
        manageSetting.defaultFunction(Vector2.zero);

        titleMessageSetting = new TextSetting(titleMessage, 0.6f, pointY, 0.58f, 0.1f);
        titleMessageSetting.function(font, FontStyle.Normal, title, TextAnchor.MiddleLeft, Color.green, 7);

        hourSetting = new InterfaceSetting(hour, hourInput, font);
        hourSetting.dateWeekfunction("小時", pointY - 0.16f, Color.red);

        minuteSetting = new InterfaceSetting(minute, minuteInput, font);
        minuteSetting.dateWeekfunction("分鐘", pointY - 0.36f, Color.red);

        // manage 物件底下子物件
        titleMessage.transform.parent = manage.transform;
        hour.transform.parent = manage.transform;
        hourInput.transform.parent = manage.transform;
        minute.transform.parent = manage.transform;
        minuteInput.transform.parent = manage.transform;
        titleMessage.transform.parent = manage.transform;
    }

    public int getServiceValue()
    {
        if (serviceInputField.text == "")
            return 1;

        return Int32.Parse(serviceInputField.text);
    }

    public int getMinuteValue()
    {
        if (minuteInput.text == "")
            return 0;

        return Int32.Parse(minuteInput.text);
    }

    public int getHourValue()
    {
        if (hourInput.text == "")
            return 0;

        return Int32.Parse(hourInput.text);
    }
}

------------------------

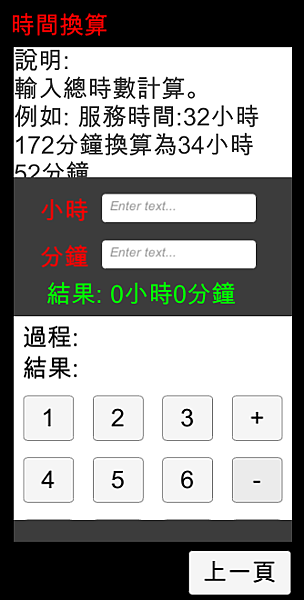

單位換算

TimeConversionInterface 腳本:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using System;
using UnityEngine.Events;
public class TimeConversionInterface
{
    private Text hour, minute, calculatorProcess, calculatorResult;
    private InputField hourInput, minuteInput;
    private RectTransform hourManage, minuteMange, calculatorArea;

    AreaSetting hourMangeSetting, minuteMangeSetting, calculatorAreaSetting;

    InterfaceSetting hourSetting, minuteSetting;

    public TimeConversionInterface(RectTransform hourManage, Text hour, InputField hourInput,
        RectTransform minuteMange, Text minute, InputField minuteInput)
    {
        this.hourManage = hourManage;
        this.hour = hour;
        this.hourInput = hourInput;

        this.minuteMange = minuteMange;
        this.minute = minute;
        this.minuteInput = minuteInput;
    }

    private Image breakGroud, instructionBreakGroud;
    private Text instruction;

    ImageSetting breakGroudSetting, instructionBreakGroudSetting;
    TextSetting instructionSetting;

    public TimeConversionInterface(Image breakGroud, Image instructionBreakGroud, Text instruction)
    {
        this.breakGroud = breakGroud;
        this.instructionBreakGroud = instructionBreakGroud;
        this.instruction = instruction;
    }

    TextSetting calculatorProcessSetting, calculatorResultSetting;

    public TimeConversionInterface(Image breakGroud, RectTransform calculatorArea, Text calculatorProcess, Text calculatorResult)
    {
        this.breakGroud = breakGroud;
        this.calculatorArea = calculatorArea;
        this.calculatorProcess = calculatorProcess;
        this.calculatorResult = calculatorResult;
    }

    private Button button1, button2, button3, button4;
    ButtonSetting button1Setting, button2Setting, button3Setting, button4Setting;

    public TimeConversionInterface(Button button1, Button button2, Button button3, Button button4)
    {
        this.button1 = button1;
        this.button2 = button2;
        this.button3 = button3;
        this.button4 = button4;
    }

    public void calculatorHorizontalBtns(float pointY, Font font, string btnStr1, string btnStr2, string btnStr3,  string btnStr4,
        UnityAction unityAction1, UnityAction unityAction2, UnityAction unityAction3, UnityAction unityAction4)
    {
        button1Setting = new ButtonSetting(button1, 0.4f, 0.7f + pointY, 0.3f, 0.15f, unityAction1);
        button1Setting.function(font, FontStyle.Normal, btnStr1, TextAnchor.MiddleCenter, Color.black, 7);

        button2Setting = new ButtonSetting(button2, 0.8f, 0.7f + pointY, 0.3f, 0.15f, unityAction2);
        button2Setting.function(font, FontStyle.Normal, btnStr2, TextAnchor.MiddleCenter, Color.black, 7);

        button3Setting = new ButtonSetting(button3, 1.2f, 0.7f + pointY, 0.3f, 0.15f, unityAction3);
        button3Setting.function(font, FontStyle.Normal, btnStr3, TextAnchor.MiddleCenter, Color.black, 7);

        button4Setting = new ButtonSetting(button4, 1.6f, 0.7f + pointY, 0.3f, 0.15f, unityAction4);
        button4Setting.function(font, FontStyle.Normal, btnStr4, TextAnchor.MiddleCenter, Color.black, 7);
    }

    // 計算機介面
    public void calculayoutSetting(Font font, float povitY, int textSize)
    {
        breakGroudSetting = new ImageSetting(breakGroud, 1f, 0.6f, 1.6f, 0.66f);
        breakGroudSetting.function(null, false, true, calculatorArea);

        calculatorAreaSetting = new AreaSetting(calculatorArea, Vector2.zero, new Vector2(1, 1), new Vector2(0.5f, 1f));
        calculatorAreaSetting.defaultFunction(new Vector2(1, Screen.height / 2 * povitY));

        // 顯示過程
        calculatorProcessSetting = new TextSetting(calculatorProcess, 1f, 0.86f, 1.5f, 0.1f);
        calculatorProcessSetting.function(font, FontStyle.Normal, "", TextAnchor.MiddleLeft, Color.black, 7);

        // 顯示計算後結果
        calculatorResultSetting = new TextSetting(calculatorResult, 1f, 0.76f, 1.5f, 0.1f);
        calculatorResultSetting.function(font, FontStyle.Normal, "", TextAnchor.MiddleLeft, Color.black, 7);

    }

    // 背景
    public void breakGroud_Layout(string instructionMessage)
    {
        breakGroudSetting = new ImageSetting(breakGroud, 1f, 1f, 1.6f, 1.6f);
        breakGroudSetting.function(null);

        instructionBreakGroudSetting = new ImageSetting(instructionBreakGroud, 1f, 1.59f, 1.6f, 0.42f);
        instructionBreakGroudSetting.function(null, false, true, instruction.rectTransform);

        // instructionBreakGroud 物件底下子物件
        instruction.transform.parent = instructionBreakGroud.transform;

        instructionSetting = new TextSetting(instruction, 0, 0, 0, 0.74f);
        instructionSetting.function(7, instructionMessage, new Vector2(0, 0f), new Vector2(1, 1), new Vector2(0.5f, 1f));
    }

    //　小時與分鐘
    public void hourAndminute(Font font, float pointY)
    {
        hourMangeSetting = new AreaSetting(hourManage, new Vector2(0.5f, 0.5f), new Vector2(0.5f, 0.5f),
            new Vector2(0.5f, 0.5f));
        hourMangeSetting.defaultFunction(Vector2.zero);

        // hourManage 物件底下子物件
        hour.transform.parent = hourManage.transform;
        hourInput.transform.parent = hourManage.transform;

        hourSetting = new InterfaceSetting(hour, hourInput, font);
        hourSetting.dateWeekfunction("小時", pointY, Color.red);

        minuteMangeSetting = new AreaSetting(minuteMange, new Vector2(0.5f, 0.5f), new Vector2(0.5f, 0.5f),
            new Vector2(0.5f, 0.5f));
        minuteMangeSetting.defaultFunction(Vector2.zero);

        // minuteMange 物件底下子物件
        minuteMange.transform.parent = minuteMange.transform;
        minuteInput.transform.parent = minuteMange.transform;

        minuteSetting = new InterfaceSetting(minute, minuteInput, font);
        minuteSetting.dateWeekfunction("分鐘", pointY - 0.15f, Color.red);
    }

    public int getHourValue()
    {
        if (hourInput.text == "")
            return 0;

        return Int32.Parse(hourInput.text);
    }

    public int getMinuteValue()
    {
        if (minuteInput.text == "")
            return 0;

        return Int32.Parse(minuteInput.text);
    }
}

------------------------

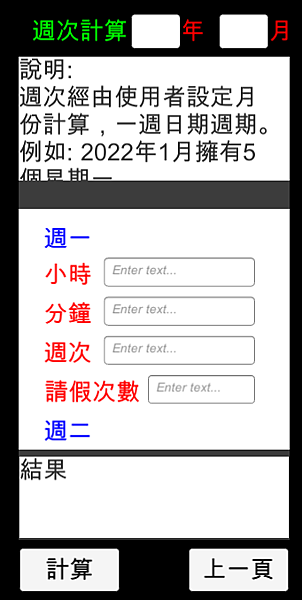

週次計算



InterfaceObj 腳本:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public abstract class InterfaceObj
{
    protected Text message;
    protected InputField inputFiled;
    protected Font font;

    public InterfaceObj(Text message, InputField inputFiled, Font font)
    {
        this.message = message;
        this.inputFiled = inputFiled;
        this.font = font;
    }

    public abstract void dateWeekfunction(string textMessage, float pointY);
    public abstract void funtcionHoliday(string textMessage, float pointY);

    public abstract void systemAndYear(string textMessage, float pointX);
}

InterfaceSetting 腳本:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using System;

public class InterfaceSetting : InterfaceObj
{
    public InterfaceSetting(Text messge, InputField inputFiled, Font font) : base(messge, inputFiled, font) { }

    TextSetting textSetting;
    InputFieldSetting inputFieldSetting;

    // 週次
    public override void dateWeekfunction(string textMessage, float pointY)
    {
        textSetting = new TextSetting(message, 0.5f, pointY, 0.3f, 0.1f);
        textSetting.function(font, FontStyle.Normal, textMessage, TextAnchor.MiddleLeft, Color.red, 7);

        inputFieldSetting = new InputFieldSetting(inputFiled, 1.15f, pointY + 0.01f, 0.9f, 0.1f);
        inputFieldSetting.function(font, FontStyle.Normal, TextAnchor.MiddleLeft, Color.black, 11,
            InputField.ContentType.IntegerNumber);
    }

    // 假期
    public override void funtcionHoliday(string textMessage, float pointY)
    {
        textSetting = new TextSetting(message, 0.65f, pointY, 0.6f, 0.1f);
        textSetting.function(font, FontStyle.Normal, textMessage, TextAnchor.MiddleLeft, Color.red, 7);

        inputFieldSetting = new InputFieldSetting(inputFiled, 1.28f, pointY + 0.01f, 0.64f, 0.1f);
        inputFieldSetting.function(font, FontStyle.Normal, TextAnchor.MiddleLeft, Color.black, 11,
            InputField.ContentType.IntegerNumber);
    }

    // 年與月
    public override void systemAndYear(string textMessage, float pointX)
    {
        textSetting = new TextSetting(message, pointX, 1.89f, 1f, 0.13f);
        textSetting.function(font, FontStyle.Normal, textMessage, TextAnchor.MiddleLeft, Color.red, 7);

        inputFieldSetting = new InputFieldSetting(inputFiled, pointX - 0.65f, 1.89f, 0.3f, 0.12f);
        inputFieldSetting.function(font, FontStyle.Normal, TextAnchor.MiddleLeft, Color.black, 11,
            InputField.ContentType.IntegerNumber);
    }
}

外部Dll 匯入Unity

外部 Dll 都屬於非Unity的套件，加上Unity API 依賴 .net 架構，所以每一個版本Unity 支援的 .NET 版本 會有些不同。

因此 我們要對於專案的設定如下:

※ 匯入Dll 檔案，非Unity內部功能，會導致錯誤，因此要更改。

Unity 2019 LTS - 2020 做法:

Unity 環境下執行可正常，發佈不正常的情況下，大多數都是缺少:

• I18N.CJK.dll
• I18N.dll
• I18N.MidEast.dll
• I18N.Other.dll
• I18N.Rare.dll
• I18N.West.dll

那些dll檔案在Unity 安裝路徑下都能找的到，以下路徑 2019 LTS 路徑

路徑:  C:\Program Files\Unity 2019.4.34f1\Editor\Data\MonoBleedingEdge\lib\mono\unityjit

就能尋找的到了。
